型號:

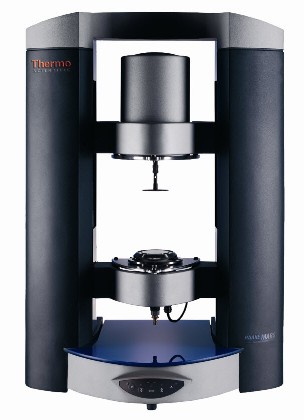

Haake MARS 平板/錐板流變儀
Torque range :0.00005 -200 mNm
Speed range10-7~1500rpm(optional 4500
rpm) Frequency range :0.00001 - 100 Hz
Normal force: +- 0.01~50
Bearing : Air bearing with MSC Control
Motor : VC controlled motor with low
inertia
 |
|
 |
|
型號:
Haake MARS
Rheoscope 顯微影像流變儀
基於Haake MARS模塊技術，加裝CCD顯微鏡觀測系統，可同時量測黏度變化及樣品影像•
放大倍率:5x，10x ，20x，50x
影像擷取 : 15 image/sec
適用溫度範圍:-5~120或-5~300度C
影像檔 |
|
 |
|
型號:

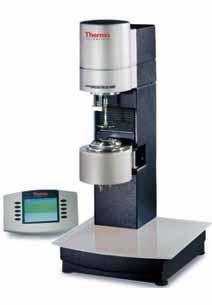

Haake Rheostress 6000 平板/錐板流變儀
Torque range :0.0002 -200 mNm (0.0001 optional)
Speed range10-7~1500rpm(optional 4500 rpm)
Frequency range :0.00001 - 100 Hz
Bearing : Air bearing with MSC Control
Normal force: 0.01~50 Motor : VC controlled motor with low
inertia
|
|
 |
|
型號:

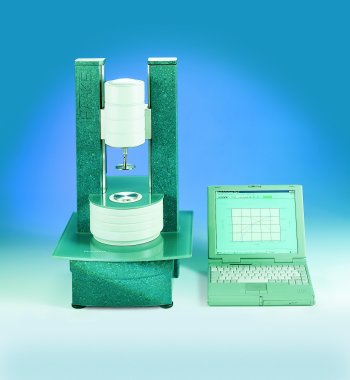

Haake Rheostress 1
平板/錐板流變儀 Torque range:0.001
(0.0005) - 100 mNm Speed range :0.025 -
1200 (optional 3200rpm) Frequency range:
0.0001 - 100 Hz Motor: low inertia drag
cup
|
|
 |
|
型號:
Haake Rotovisco 1 Rotation Rheometer 旋轉流變儀 Torque range:0.1
- 50 mNm Speed range :0.0125
- 1200 rpm
Motor: micro stepper motor
|
|
 |
|
型號:

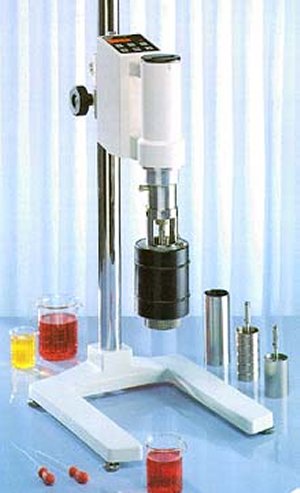

Haake VT 550 黏度計
Viscosity range (mPas): 1 - 1 000 000
Torque range (mNm):0.1 - 30 Speed range
(rpm): 0.5 - 800
|
|
 |
|
型號:

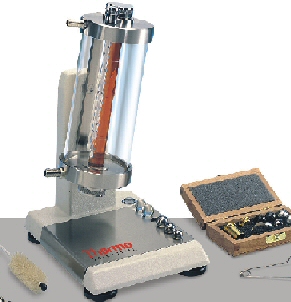

Haake Falling ball 落球式黏度計
Viscosity range (mPas): 0.5 - 105 mPas
溫度範圍:-20°C to +120°C
再現性Reproducibility:< 0.5%
|
|
 |
|
型號:

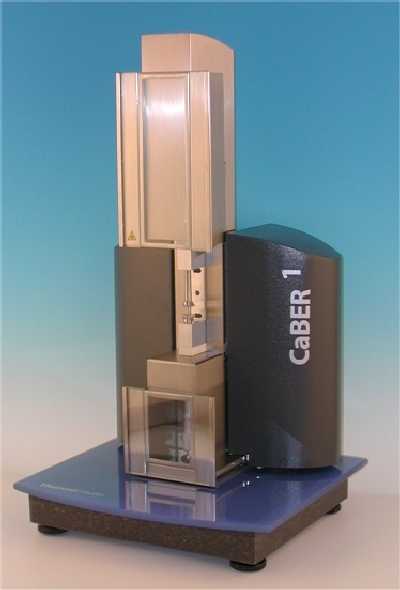

Haake CaBER1 流體延伸流變儀
Hencky strains: up to ε0 = 10
Strain rate range: Imposed strain rate:
0.01 < ε0 < 300 s-1
Strain rate range: Fluid strain rate:
10-5 < ε0 < 10 s-1
Shear Viscosity range: 10-10 6 mPas
Plate diameter: 4 < Dplate < 8 mm,
standard = 6 mm
影像檔 |
|
 |
|
型號:
Haake
Polylab QC (extruder) 押出機
Barrel length: L 25 x D (optional 20 x D, 30 x D)
Barrel diameter: D 19,05 mm (3/4")
Overload protection: electrical (maximum torque control or
cut-off)
Maximum torque: 120 Nm
Maximum operating temperature : 450 °C
|
|
 |
|
型號:
Haake Polylab
QC (mixer) 桌上型混鍊機
(塑譜儀)
Drive power: 3.0 KW
Speed range: 0-200 1/min
Torque range: 0-300 Nm Chamber volume with rotor (net):
70 - 100 cm 3 Max. temperature : 450 °C
Overload protection: electrical (maximum
torque control or cut-off
|
|
 |
|

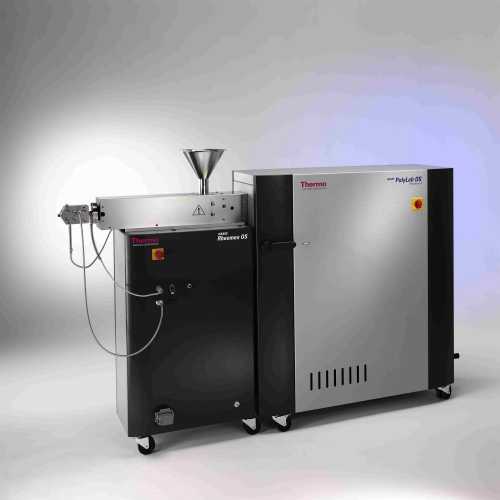

型號:Haake PolyLab OS
(extruder)
單、雙螺桿押出機
HAAKE PolyLab系列轉矩流變儀是世界上第一台採用了模組化技術和即聯即用技術的轉矩流變儀創新型號。這種模組化結構具有良好的擴展性和適應性，可配備各種模頭和擠出後加工設備，適用於造粒、吹膜、片材擠出、管材擠出、電纜包覆、熔融紡絲、毛細管流變測試等不同應用。該系統主要包括主機、單螺杆擠出系統、雙螺杆擠出系統、口模和相關應用軟體等不同功能單元。
|
|
 |
|
型號:

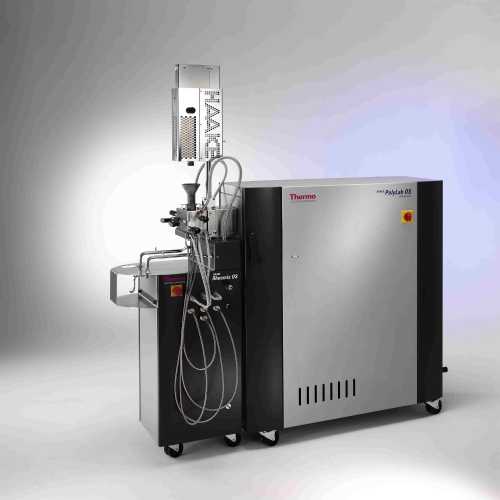

Haake PolyLab OS (mixer) 混鍊機
(塑譜儀)
HAAKE PolyLab系列轉矩流變儀是世界上第一台採用了模組化技術和即聯即用技術的轉矩流變儀創新型號。主機是控制中心，具有驅動和控制測量單元的功能。受控輔機（如混合單元）是智慧化的針對特定應用的測量單元，可通過匯流排系統將測量資料傳輸到主機。
|
|
 |
|
型號:

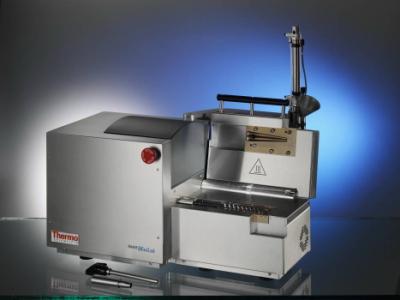

Haake MiniLab 微量混鍊機
(塑譜儀)
Motor power: 400W Speed range: 1
... 360 rpm Torque max.: 5 Nm / screw
Extruder design: conical, co-/counter rotating
Volume: barrel 3.5 ccm, backflow channel, 2.0ccm
Max Temperature: 350°C (optional 420°C)
|
|
 |
|
型號:

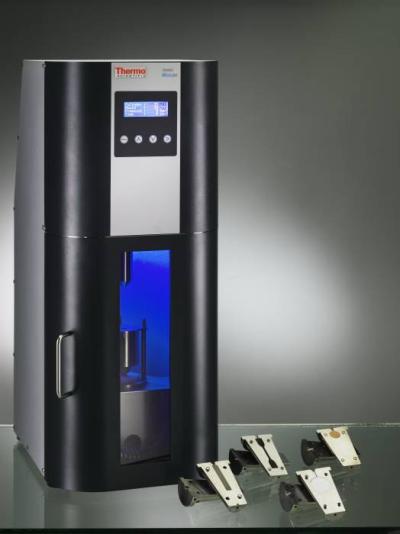

Haake MiniJet微量射出成型機
Injection pressure: max. 1,200 bar Air
pressure: max. 10 bar Mold temperature :
max. 250°C Cylinder temperature: max.
400°C Dimensions: 300mm x 460mm x 710mm
|
|
產∣品∣介∣紹 德國
Thermo Haake
